76 0532 1111 00012-0200 | binder

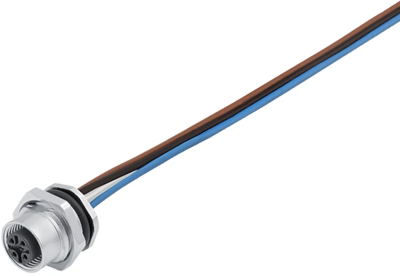

Panel socket, M12, 12 pole, strand connection, screw locking, straight, 76 0532 1111 00012-0200
Unit Price (€ / pc.)
31.0114 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
31.01 € *
Price list
Quantity
Price per unit*
1 pcs.
31.0114 €
10 pcs.
29.1431 €
25 pcs.
27.3938 €
50 pcs.
25.7516 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 76 0532 1111 00012-0200, binder
M12-A Female panel mount connector, Contacts: 12, unshielded, single wires, IP68/IP69K, UL, PG 9, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Degree of protection (IP) | IP68/IP69K | |
| Version | cable 0.2 m | |
| Assembly | rear mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
