76 0531 1011 00008-0200 | binder

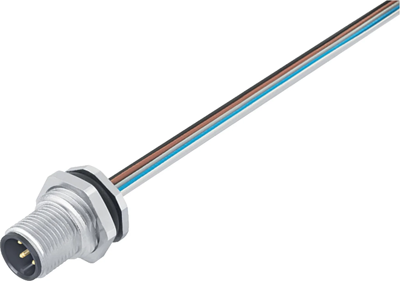

Panel plug, M12, 8 pole, strand connection, screw locking, straight, 76 0531 1011 00008-0200
Unit Price (€ / pc.)
24.1451 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.15 € *
Price list
Quantity
Price per unit*
1 pcs.
24.1451 €
10 pcs.
23.4192 €
50 pcs.
19.1352 €
100 pcs.
13.6850 €
2000 pcs.
11.3050 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 77 3529 0000 50704-0200, binder
M12 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 2 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Assembly | rear mounting | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP68 | |
| Product type | panel plug | |

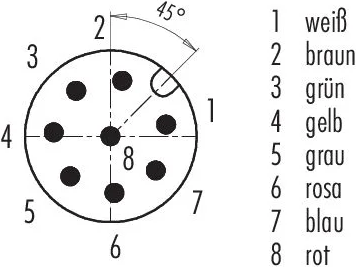

| Pin number | 8 pole | |
| Version | cable 0.2 m | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
