76 0432 0111 00005-0200 | binder

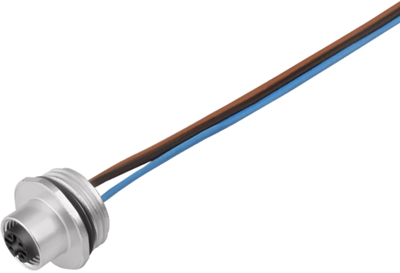

Panel socket, M12, 5 pole, strand connection, screw locking, straight, 76 0432 0111 00005-0200
Unit Price (€ / pc.)
18.9210 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.92 € *
Price list
Quantity
Price per unit*
1 pcs.
18.9210 €
10 pcs.
17.7786 €
50 pcs.
16.7195 €
100 pcs.
15.7199 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 76 0432 0111 00005-0200, binder
M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP67, UL, M20x1.5.

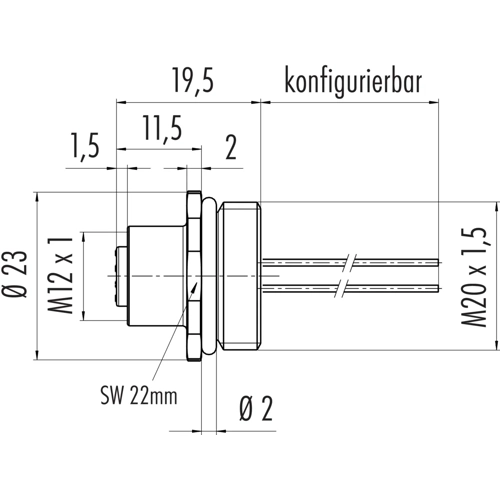

Technical specifications
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
