76 0431 0111 00012-0200 | binder

Panel plug, M12, 12 pole, strand connection, screw locking, straight, 76 0431 0111 00012-0200

Order No.: 70P2581
EAN: 4099891665784
MPN:
76 0431 0111 00012-0200
Series: 763
76 0431 0111 00012-0200 binder Sensor-Actuator Connectors Image 1
76 0431 0111 00012-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
32.8440 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
32.84 € *
Price list
Quantity
Price per unit*
1 pcs.
32.8440 €
10 pcs.
30.8805 €
25 pcs.
28.7147 €
50 pcs.
26.7036 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 0431 0111 00012-0200, binder

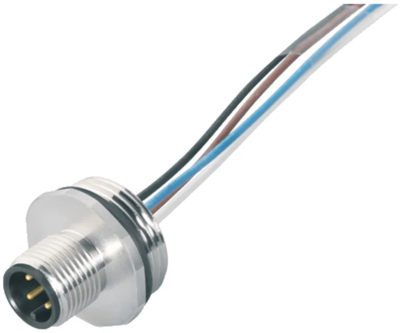

M12-A Male panel mount connector, Contacts: 12, unshielded, single wires, IP68, UL, M20x1.5.

Technical specifications
Pin number 12 pole
Degree of protection (IP) IP68
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
