76 0431 0111 00008-0200 | binder

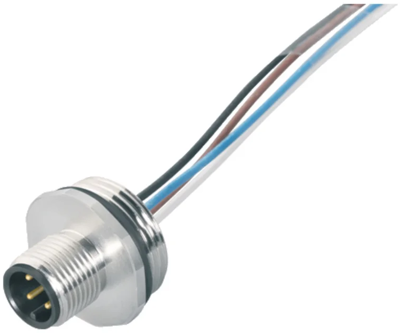

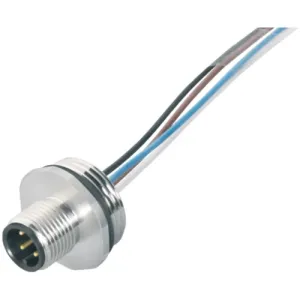

Panel plug, M12, 8 pole, strand connection, screw locking, straight, 76 0431 0111 00008-0200

Order No.: 70P2580
EAN: 4099891665777
MPN:
76 0431 0111 00008-0200
Series: 763
76 0431 0111 00008-0200 binder Sensor-Actuator Connectors Image 1
76 0431 0111 00008-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.1205 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.12 € *
Price list
Quantity
Price per unit*
1 pcs.
26.1205 €
10 pcs.
24.5497 €
25 pcs.
23.0741 €
50 pcs.
21.6818 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 0431 0111 00008-0200, binder

M12-A Male panel mount connector, Contacts: 8, unshielded, single wires, IP68, UL, M20x1.5.

Technical specifications
Pin number 8 pole
Degree of protection (IP) IP68
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
