76 0132 0111 00012-0200 | binder

Panel socket, M12, 12 pole, strand connection, screw locking, straight, 76 0132 0111 00012-0200

Order No.: 70P1637
EAN: 4099891661250
MPN:
76 0132 0111 00012-0200
Series: 763

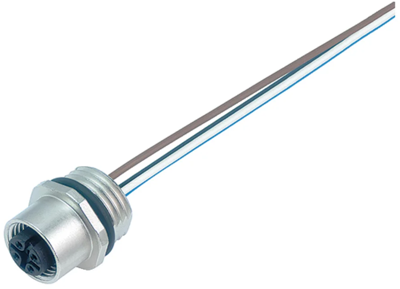

76 0132 0111 00012-0200 binder Sensor-Actuator Connectors Image 1

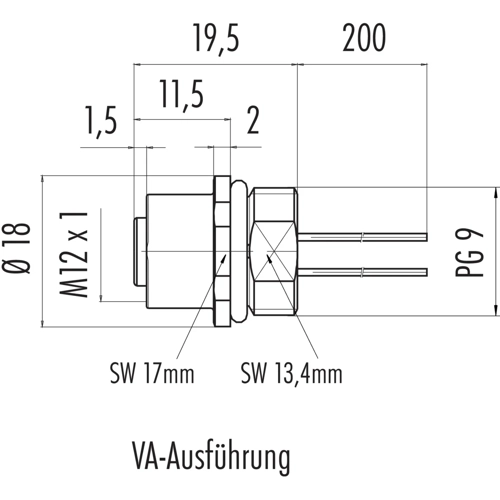

76 0132 0111 00012-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
29.9404 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
29.94 € *
Price list
Quantity
Price per unit*
1 pcs.
29.9404 €
10 pcs.
28.1435 €
25 pcs.
26.4418 €
50 pcs.
24.8591 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 0132 0111 00012-0200, binder

M12-A Female panel mount connector, Contacts: 12, unshielded, single wires, IP68, UL, PG 9.

Technical specifications
Filter Property Value
Pin number 12 pole
Degree of protection (IP) IP68
Version cable 0.2 m
Assembly panel mounting
Additional parts equipped
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection strand connection
Thread size M12
Product type panel socket
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
