70 4434 247 04 | binder

Panel socket, M12, 2 pole, cable connection, screw locking, straight, 70 4434 247 04

Order No.: 70P1915
EAN: 4099891663056
MPN:
70 4434 247 04
Series: 766

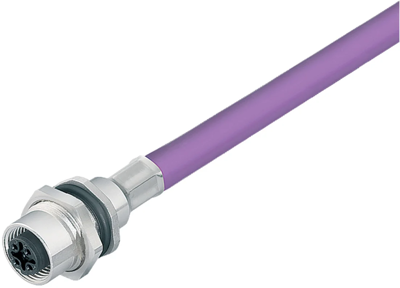

70 4434 247 04 binder Sensor-Actuator Connectors Image 1

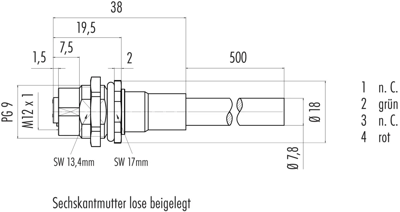

70 4434 247 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
36.6520 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
36.65 € *
Price list
Quantity
Price per unit*
1 pcs.
36.6520 €
10 pcs.
34.4624 €
25 pcs.
32.0467 €
50 pcs.
29.8095 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 70 4434 247 04, binder

M12-B Female panel mount connector, Contacts: 2, shielded, with cable assembled, IP68, PG 9, Profibus, PUR, purple, 1 x 2 x 0.25 mm², front fastened, 0.5 m.

Technical specifications
Filter Property Value
Pin number 2 pole
Degree of protection (IP) IP68
Assembly front mounting
Orientation straight
Version cable 0.5 m, PUR
Product type panel socket
Additional parts equipped
Type of locking screw locking
Contact connection cable connection
Thread size M12
contact surface gold-plated
Logistics
Property Value
Country of origin HU
Customs tariff number 85444290
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
