70 3734 706 04 | binder

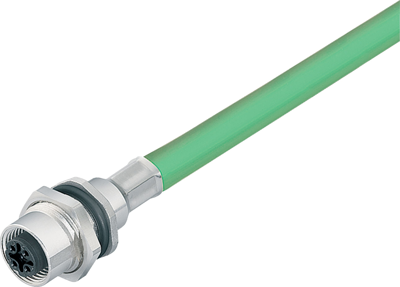

Panel socket, M12, 4 pole, cable connection, screw locking, straight, 70 3734 706 04
Unit Price (€ / pc.)
30.3688 € *
Available: 4 pcs.
Total Price:
30.37 € *
Price list
Quantity
Price per unit*
1 pcs.
30.3688 €
10 pcs.
26.7393 €
50 pcs.
24.9067 €
150 pcs.
23.8000 €
500 pcs.
22.5981 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 70-3734-706-04, Franz Binder
M12-D Female connector, poles 4, shielded, Profinet, PUR green, 2 x 2 x AWG 22, 0.5 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.5 m, PUR | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | cable connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
