70 3734 705 04 | binder

Panel socket, M12, 4 pole, cable connection, screw locking, straight, 70 3734 705 04

Order No.: 66P2069
EAN: 4099879095091
MPN:
70 3734 705 04
Series: 876

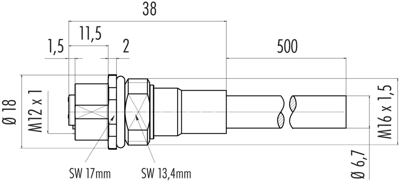

70 3734 705 04 binder Sensor-Actuator Connectors Image 1

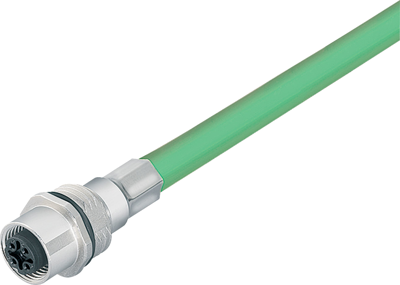

70 3734 705 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.9650 € *
Available: 2 pcs.
Total Price:
27.97 € *
Price list
Quantity
Price per unit*
1 pcs.
27.9650 €
10 pcs.
24.5973 €
50 pcs.
22.9194 €
150 pcs.
21.9198 €
500 pcs.
20.7893 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 70-3734-705-04, Franz Binder

M12-D Female connector, poles 4, shielded, cable assembled, Profinet, PUR green, 0.5 m

Technical specifications
Pin number 4 pole
Degree of protection (IP) IP67
Assembly panel mounting
Orientation straight
Version cable 0.5 m, PUR
Product type panel socket
Additional parts equipped
Type of locking screw locking
Contact connection cable connection
Thread size M12
contact surface gold-plated
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
