70 3733 706 04 | binder

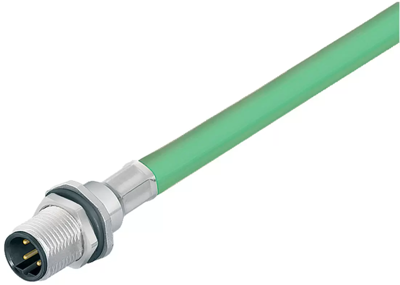

Panel plug, M12, 4 pole, cable connection, screw locking, straight, 70 3733 706 04

Order No.: 70P2102
EAN: 4099891663728
MPN:
70 3733 706 04
Series: 876
70 3733 706 04 binder Sensor-Actuator Connectors Image 1
70 3733 706 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
35.7714 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
35.77 € *
Price list
Quantity
Price per unit*
1 pcs.
35.7714 €
10 pcs.
33.6175 €
25 pcs.
31.2732 €
50 pcs.
29.0836 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 70 3733 706 04, binder

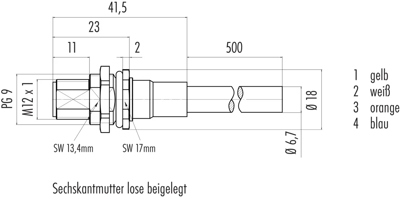

M12-D Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, PG 9, Profinet, PUR, green, 2 x 2 x AWG 22, front fastened, 0.5 m.

Technical specifications
Pin number 4 pole
Degree of protection (IP) IP67
Assembly front mounting
Orientation straight
Version cable 0.5 m, PUR
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection cable connection
Thread size M12
contact surface gold-plated
Logistics
Country of origin HU
Customs tariff number 85444290
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
