70 3733 705 04 | binder

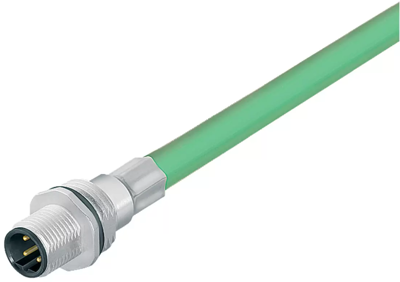

Panel plug, M12, 4 pole, cable connection, screw locking, straight, 70 3733 705 04
Unit Price (€ / pc.)
27.9293 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
27.93 € *
Price list
Quantity
Price per unit*
1 pcs.
27.9293 €
10 pcs.
26.2395 €
25 pcs.
24.6687 €
50 pcs.
23.1931 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 70 3733 705 04, binder
M12-D Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, M16x1.5, Profinet, PUR, green, 2 x 2 x AWG 22, 0.5 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.5 m, PUR | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | cable connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
