70 3442 785 05 | binder

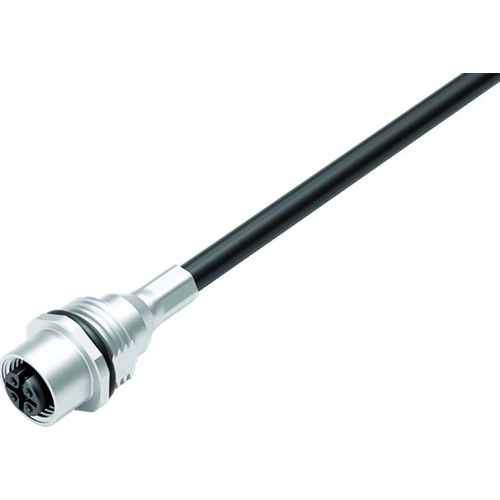

Panel socket, M12, 5 pole, cable connection, screw locking, straight, 70 3442 785 05
Unit Price (€ / pc.)
36.3664 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
36.37 € *
Price list
Quantity
Price per unit*
1 pcs.
36.3664 €
5 pcs.
34.1887 €
15 pcs.
32.8797 €
50 pcs.
31.4160 €
150 pcs.
30.1070 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 70-3442-785-05, Franz Binder
M12-A Female connector, poles 5, 5.3 mm, shielded, cable assembled, PUR, 5 x 0.25 mm², 0.5 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | cable connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP68 | |
| Product type | panel socket | |
| Pin number | 5 pole | |
| Version | cable 0.5 m, PUR | |
| Type of locking | screw locking |
Download
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
