70 3420 005 04 | binder

Panel socket, M8, 4 pole, cable connection, screw locking, straight, 70 3420 005 04

Order No.: 70P1154
EAN: 4099891660048
MPN:
70 3420 005 04
Series: 718

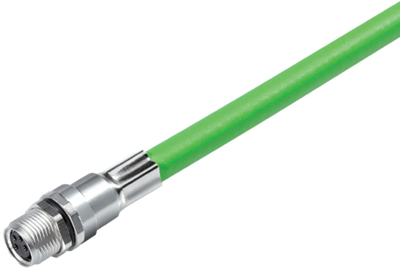

70 3420 005 04 binder Sensor-Actuator Connectors Image 1

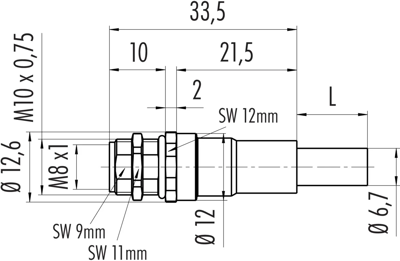

70 3420 005 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.5846 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.58 € *
Price list
Quantity
Price per unit*
1 pcs.
26.5846 €
10 pcs.
25.0019 €
25 pcs.
23.5025 €
50 pcs.
22.0983 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 70 3420 005 04, binder

M8 Female panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m.

Technical specifications
Pin number 4 pole
Degree of protection (IP) IP67
Assembly panel mounting
Orientation straight
Version cable 0.5 m, PUR
Product type panel socket
Additional parts equipped
Type of locking screw locking
Contact connection cable connection
Thread size M8
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
