09 3782 95 08 | binder

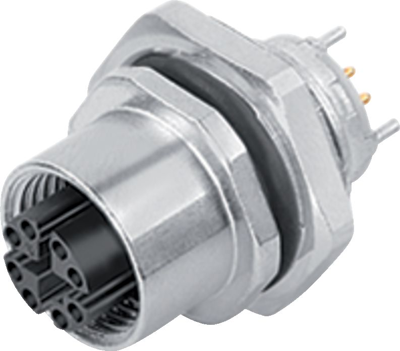

Mounting socket, M12, 8 pole, THT, Screw locking, straight, 09 3782 95 08
Images may differ
Unit Price (€ / pc.)
36.6044 € *
Available: 8 pcs.
Leadtime: 4 Weeks **
Total Price:
36.60 € *
Quantity
Price per unit*
1 pcs.
36.6044 €
5 pcs.
34.4148 €
15 pcs.
33.1058 €
50 pcs.
31.6302 €
150 pcs.
30.3093 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Female panel mount connector, 09-3782-95-08, Franz Binder
M12-X Female connector, poles 8, shieldable, THT, IP67, UL, M16x1.5
Technical specifications
| Version | mounting socket | |
| Thread size | M12 | |
| Coding | X | |
| Contact connection | THT | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
