09 3492 120 12 | binder

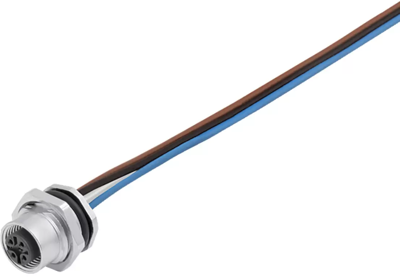

Panel socket, M12, 12 pole, strand connection, screw locking, straight, 09 3492 120 12
Unit Price (€ / pc.)
39.6032 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
39.60 € *
Price list
Quantity
Price per unit*
1 pcs.
39.6032 €
5 pcs.
37.2351 €
15 pcs.
35.7952 €
50 pcs.
34.2006 €
150 pcs.
32.7845 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 09-3492-120-12, Franz Binder
M12-A Female connector, poles 12, unshielded, single wires, IP68/IP69K, UL, M16x1.5, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Degree of protection (IP) | IP68/IP69K | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
