09 3491 700 12 | binder
Panel socket, M12, 12 pole, strand connection, screw locking, straight, 09 3491 700 12
Unit Price (€ / pc.)
24.9424 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.94 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9424 €
10 pcs.
23.4430 €
50 pcs.
22.0507 €
100 pcs.
20.7179 €
*incl. VAT plus shipping costs
Subject to prior sale

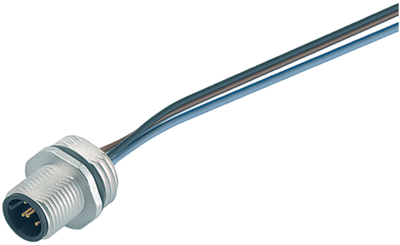

Flange plug, 09-3491-700-12, Binder
The 09-3491-700-12 is a flange plug with stranded wires plug circular connector. This product is designed for many automation applications, meeting the common requirements of the automation industry.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Degree of protection (IP) | IP68 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
