09 3491 116 12 | binder

Panel plug, M12, 12 pole, strand connection, screw locking, straight, 09 3491 116 12

Order No.: 66P1355
EAN: 4099889699708
MPN:
09 3491 116 12
Series: 763

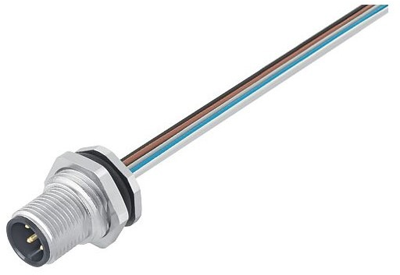

09 3491 116 12 binder Sensor-Actuator Connectors Image 1
09 3491 116 12 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.4656 € *
Available: 82 pcs.
Total Price:
26.47 € *
Price list
Quantity
Price per unit*
1 pcs.
26.4656 €
10 pcs.
24.8710 €
25 pcs.
23.3716 €
50 pcs.
21.9674 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 09-3491-116-12, BINDER

M12-A Male panel mount connector, Contacts: 12, unshielded, single wires, IP68, UL, PG 9, front mounting.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Filter Property Value
Thread size M12
Additional parts equipped
Pin number 12 pole
Orientation straight
Degree of protection (IP) IP68
Type of locking screw locking
Assembly panel mounting
Contact connection strand connection
contact surface gold-plated
Version cable 0.2 m
Product type panel plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
