09 3482 120 08 | binder

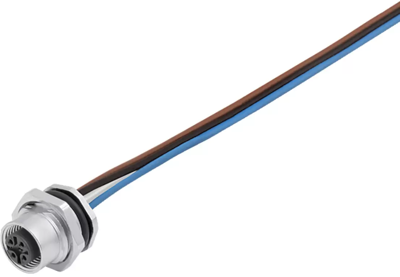

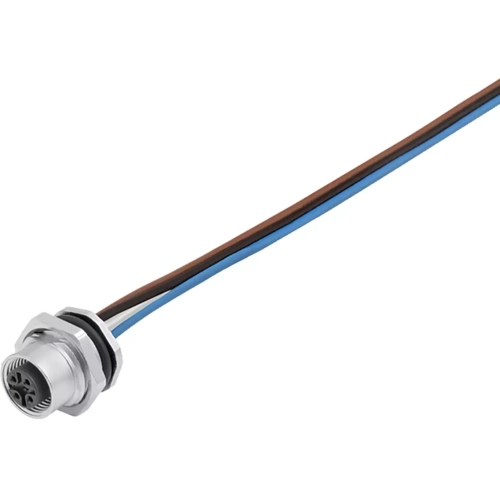

Panel socket, M12, 8 pole, strand connection, screw locking, straight, 09 3482 120 08
Unit Price (€ / pc.)
24.0975 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.10 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0975 €
10 pcs.
21.2058 €
50 pcs.
19.7540 €
150 pcs.
18.8972 €
500 pcs.
17.9333 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 09-3482-120-08, Franz Binder
M12-A Female connector, poles 8, unshielded, single wires, IP68/IP69K, UL, M16x1.5, front fastened
Technical specifications
| Pin number | 8 pole | |
| Degree of protection (IP) | IP68/IP69K | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
