09 3481 679 08 | binder

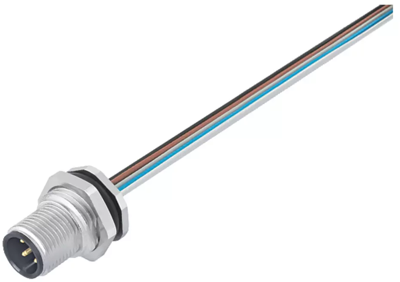

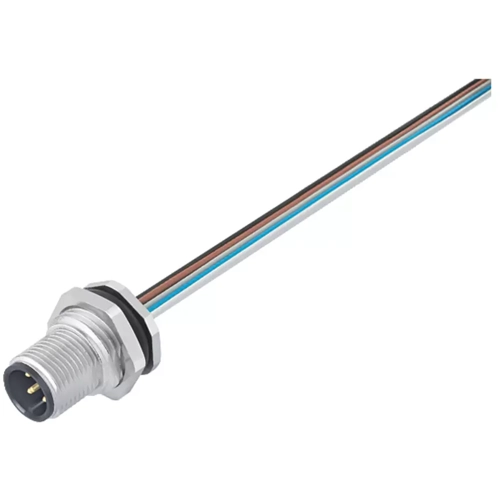

Panel plug, M12, 8 pole, strand connection, screw locking, straight, 09 3481 679 08
Unit Price (€ / pc.)
43.7920 € *
Available: 6 pcs.
Total Price:
43.79 € *
Price list
Quantity
Price per unit*
1 pcs.
43.7920 €
5 pcs.
41.1502 €
15 pcs.
39.5794 €
50 pcs.
37.8301 €
150 pcs.
36.2593 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 09-3481-679-08, Franz Binder
M12-A Male connector, poles 8, unshielded, single wires, IP68, PG9, front fastened, stainless steel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Degree of protection (IP) | IP68 | |
| Type of locking | screw locking | |
| Version | cable 0.2 m | |
| Contact connection | strand connection | |
| Product type | panel plug | |
| Pin number | 8 pole | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Assembly | panel mounting | |
| Orientation | straight |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
