09 3443 00 05 | binder

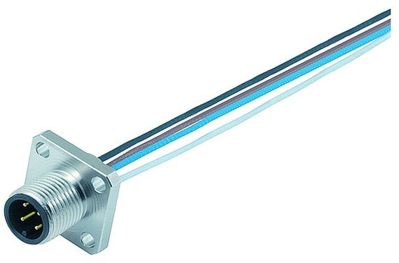

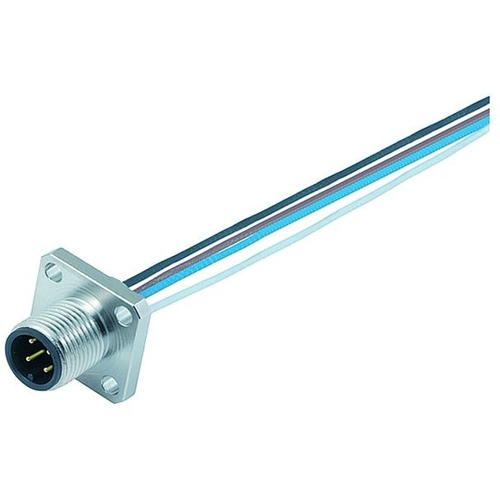

Panel plug, M12, 5 pole, strand connection, screw locking, straight, 09 3443 00 05
Unit Price (€ / pc.)
18.1475 € *
Available: 49 pcs.
Total Price:
18.15 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1475 €
10 pcs.
16.8742 €
50 pcs.
15.6961 €
100 pcs.
14.6013 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 09-3443-00-05, BINDER
M12-A Square male panel mount connector, Contacts: 5, unshielded, single wires, IP40, Square.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel plug | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP40 | |
| Additional parts | equipped | |
| Version | cable 0.2 m |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
