09 3442 700 05 | binder

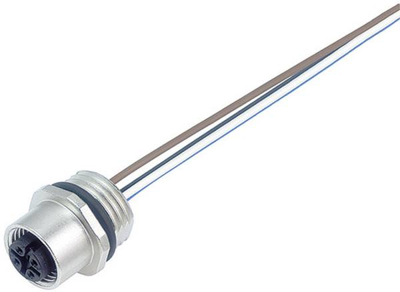

Panel socket, M12, 5 pole, strand connection, screw locking, straight, 09 3442 700 05
Unit Price (€ / pc.)
17.4335 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
17.43 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4335 €
10 pcs.
15.3391 €
50 pcs.
14.2919 €
150 pcs.
13.6731 €
500 pcs.
12.9710 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 09-3442-700-05, BINDER

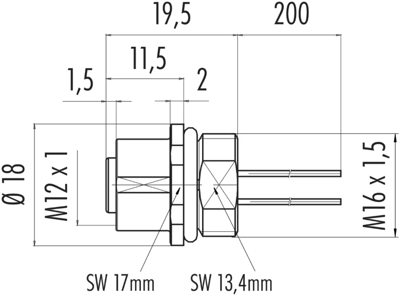

M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP68, M16x1.5.
Features
- Contact material: CuSn (Bronze)
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.2 m | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
