09 3442 679 05 | binder

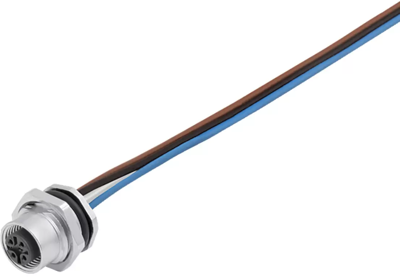

Panel socket, M12, 5 pole, strand connection, screw locking, straight, 09 3442 679 05
Unit Price (€ / pc.)
41.7095 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
41.71 € *
Price list
Quantity
Price per unit*
1 pcs.
41.7095 €
5 pcs.
39.1986 €
15 pcs.
37.7111 €
50 pcs.
36.0451 €
150 pcs.
34.5457 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 09-3442-679-05, Franz Binder
M12-A Female connector, poles 5, unshielded, single wires, IP68/IP69K, UL, PG 9
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel socket | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP68/IP69K | |
| Additional parts | equipped | |
| Version | cable 0.2 m |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
