09 3442 433 05 | binder

Panel socket, M12, 5 pole, strand connection, screw locking, straight, 09 3442 433 05

Order No.: 70P2548
EAN: 4099891665456
MPN:
09 3442 433 05
Series: 763

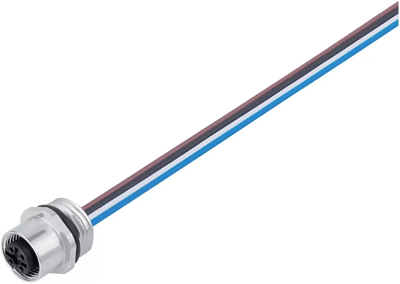

09 3442 433 05 binder Sensor-Actuator Connectors Image 1
09 3442 433 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.2784 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.28 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2784 €
10 pcs.
17.1717 €
50 pcs.
16.1364 €
100 pcs.
15.1725 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 09 3442 433 05, binder

M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP67, UL, VDE, PG 9, for the power supply.

Technical specifications
Pin number 5 pole
Degree of protection (IP) IP67
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel socket
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
