09 3442 116 05 | binder

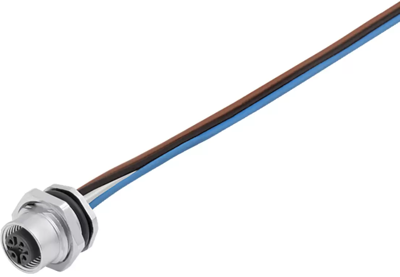

Panel socket, M12, 5 pole, strand connection, screw locking, straight, 09 3442 116 05
Unit Price (€ / pc.)
14.0182 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
14.02 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0182 €
10 pcs.
13.0305 €
50 pcs.
12.1261 €
100 pcs.
11.2812 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 09-3442-116-05, Franz Binder
M12-A Female connector, poles 5, unshielded, single wires, IP68/IP69K, UL, PG 9, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Degree of protection (IP) | IP68/IP69K | |
| Version | cable 0.2 m | |
| Assembly | panel mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| Product type | panel socket |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
