09 3442 00 05 | binder

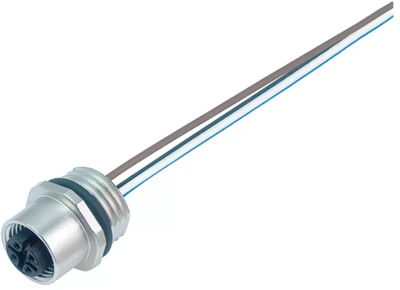

Panel socket, M12, 5 pole, strand connection, screw locking, straight, 09 3442 00 05
Unit Price (€ / pc.)
16.7433 € *
Available: 5 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
16.74 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7433 €
10 pcs.
14.7441 €
50 pcs.
13.7326 €
150 pcs.
13.1257 €
500 pcs.
12.4593 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 09-3442-00-05, Franz Binder
M12-A Female connector, poles 5, unshielded, single wires, IP68, UL, PG 9
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel socket | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP68 | |
| Additional parts | equipped | |
| Version | cable 0.2 m |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
