09 3441 679 05 | binder
Panel plug, M12, 5 pole, strand connection, screw locking, straight, 09 3441 679 05
Unit Price (€ / pc.)
31.4636 € *
Available: 10 pcs.
Total Price:
31.46 € *
Price list
Quantity
Price per unit*
1 pcs.
31.4636 €
10 pcs.
27.6913 €
50 pcs.
25.7873 €
150 pcs.
24.6568 €
500 pcs.
23.4073 €
*incl. VAT plus shipping costs
Subject to prior sale

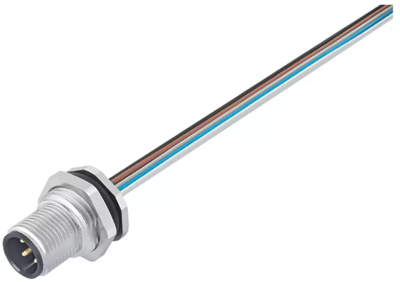

Male connector, 09-3441-679-05, Franz Binder
M12-A Male connector, poles 5, unshielded, single wires, IP68, PG9, front fastened, stainless steel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Degree of protection (IP) | IP68 | |
| Type of locking | screw locking | |
| Version | cable 0.2 m | |
| Contact connection | strand connection | |
| Product type | panel plug | |
| Pin number | 5 pole | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Assembly | panel mounting | |
| Orientation | straight |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
