09 3441 433 05 | binder

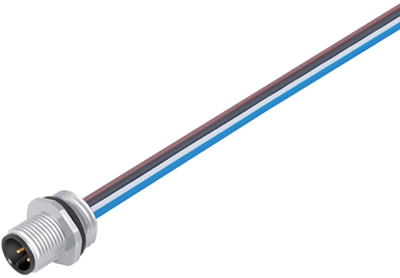

Panel plug, M12, 5 pole, strand connection, screw locking, straight, 09 3441 433 05
Unit Price (€ / pc.)
18.0166 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.02 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0166 €
10 pcs.
16.7552 €
50 pcs.
15.5890 €
100 pcs.
14.5061 €
*incl. VAT plus shipping costs
Subject to prior sale
Flange plug, 09-3441-433-05, Binder
The 09-3441-433-05 is a flange plug with stranded wires plug circular connector. This product is designed for many automation applications, meeting the common requirements of the automation industry.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
