09 3441 116 05 | binder

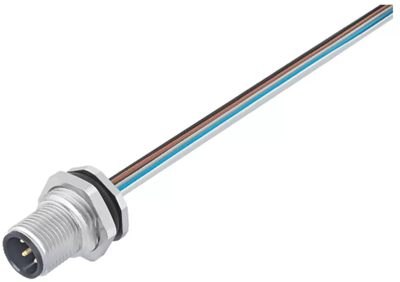

Panel plug, M12, 5 pole, strand connection, screw locking, straight, 09 3441 116 05
Unit Price (€ / pc.)
14.2086 € *
Available in 5 Days: 34 pcs. - if ordered today
Total Price:
14.21 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2086 €
10 pcs.
13.2209 €
50 pcs.
12.2927 €
100 pcs.
11.0670 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 09-3441-116-05, Franz Binder
M12-A Male connector, poles 5, unshielded, single wires, IP68, UL, PG 9, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Degree of protection (IP) | IP68 | |
| Type of locking | screw locking | |
| Version | cable 0.2 m | |
| Contact connection | strand connection | |
| Product type | panel plug | |
| Pin number | 5 pole | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Assembly | panel mounting | |
| Orientation | straight |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
