09 3432 700 04 | binder

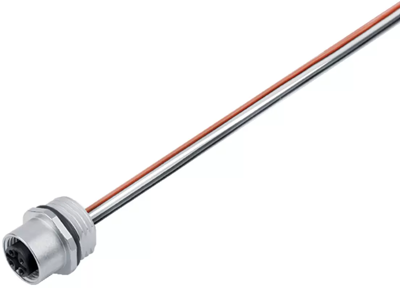

Panel socket, M12, 4 pole, strand connection, screw locking, straight, 09 3432 700 04
Unit Price (€ / pc.)
15.6723 € *
Available: 2 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
15.67 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6723 €
10 pcs.
13.7802 €
50 pcs.
12.8401 €
150 pcs.
12.2808 €
500 pcs.
11.6501 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 09-3432-700-04, Franz Binder
M12-A Female connector, poles 4, unshielded, single wires, IP68, UL, M16x1.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Degree of protection (IP) | IP68 | |
| Type of locking | screw locking | |
| Version | cable 0.2 m | |
| Contact connection | strand connection | |
| Product type | panel socket | |
| Pin number | 4 pole | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Assembly | panel mounting | |
| Orientation | straight |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
