09 3431 722 04 | binder
Panel plug, M12, 4 pole, strand connection, screw locking, straight, 09 3431 722 04
Unit Price (€ / pc.)
15.7913 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
15.79 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7913 €
10 pcs.
14.6846 €
50 pcs.
13.6493 €
100 pcs.
12.6973 €
*incl. VAT plus shipping costs
Subject to prior sale

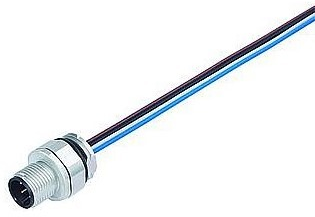

Sensor-actuator connector, 09-3431-722-04, BINDER

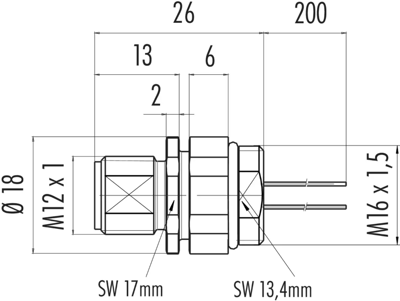

M12-A Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, M16x1.5.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel plug | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68 | |
| Additional parts | equipped | |
| Version | cable 0.2 m |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
