09 3431 284 04 | binder
Panel plug, M12, 4 pole, strand connection, screw locking, straight, 09 3431 284 04
Unit Price (€ / pc.)
18.8853 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.89 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8853 €
10 pcs.
17.7429 €
50 pcs.
16.6838 €
100 pcs.
15.6961 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 09 3431 284 04, binder

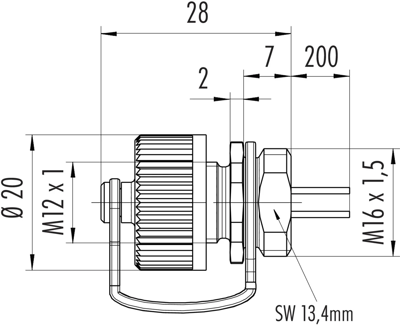

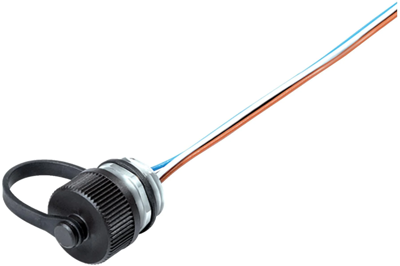

M12-A Male panel mount connector, Contacts: 4, unshielded, single wires, IP69K, M16x1.5, for outdoor applications.
Technical specifications
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68/IP69 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
