09 3420 82 04 | binder

Panel socket, M8, 4 pole, THT, screw locking, angled, 09 3420 82 04

Order No.: 66P1144
EAN: 4099889699562
MPN:
09 3420 82 04
Series: 718
09 3420 82 04 binder Sensor-Actuator Connectors

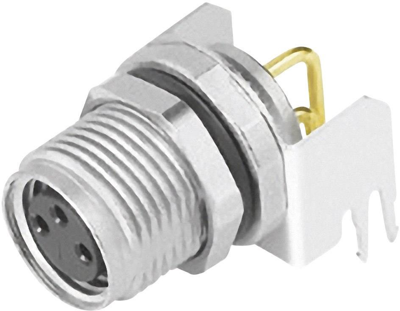

Image may differ

Discontinued

Unit Price (€ / pc.)
10.353 € *
Available: 2,380 pcs.
Total Price:
10.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.353 €

Sensor-actuator connector, 09-3420-82-04, BINDER

M8 Female angled panel mount connector, Contacts: 4, shieldable, THT, IP67, M10x0.75, front mounting.

Features

  • Contact material: CuSn (Bronze)
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Filter Property Value
Contact connection THT
Degree of protection (IP) IP67
Orientation angled
Assembly panel mounting
Additional parts equipped
Pin number 4 pole
Type of locking screw locking
contact surface gold-plated
Thread size M8
Product type panel socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
