09 3412 00 03 | binder

Panel socket, M8, 3 pole, strand connection, screw locking, straight, 09 3412 00 03

Order No.: 67F9955
EAN: 4099889703436
MPN:
09 3412 00 03
Series: 718

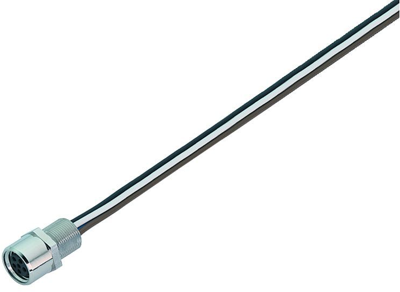

09 3412 00 03 binder Sensor-Actuator Connectors Image 1
09 3412 00 03 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.4367 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
9.44 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4367 €
10 pcs.
8.4966 €
50 pcs.
7.8183 €
100 pcs.
6.8782 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 09 3412 00 03, BINDER

M8 Female panel mount connector, Contacts: 3, unshielded, single wires, IP67/IP69K.

Features

  • Contact material: CuSn (Bronze)
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Filter Property Value
Contact connection strand connection
Degree of protection (IP) IP67/IP69K
Orientation straight
Assembly panel mounting
Additional parts equipped
Version cable 0.2 m
Pin number 3 pole
Type of locking screw locking
contact surface gold-plated
Thread size M8
Product type panel socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
