09 3391 86 04 | binder

Panel plug, M8, 4 pole, strand connection, screw locking, straight, 09 3391 86 04

Order No.: 66P1109
EAN: 4099889699531
MPN:
09 3391 86 04
Series: 718

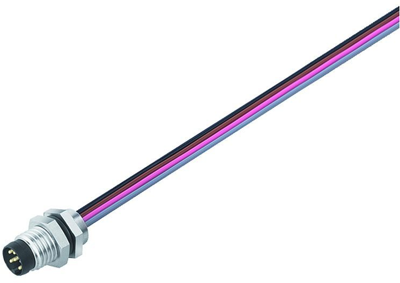

09 3391 86 04 binder Sensor-Actuator Connectors Image 1
09 3391 86 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.4486 € *
Available: 50 pcs.
Total Price:
9.45 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4486 €
10 pcs.
8.5085 €
50 pcs.
7.9730 €
100 pcs.
7.5089 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 09-3391-86-04, BINDER

M8 Male panel mount connector, Contacts: 4, unshielded, single wires, IP67/IP69K, front mounting.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Filter Property Value
Contact connection strand connection
contact surface gold-plated
Assembly front mounting
Additional parts equipped
Thread size M8
Orientation straight
Degree of protection (IP) IP67/IP69K
Product type panel plug
Pin number 4 pole
Version cable 0.2 m
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
