09 3391 00 04 | binder

Panel plug, M8, 4 pole, strand connection, screw locking, straight, 09 3391 00 04

Order No.: 66P1102
EAN: 4099889699524
MPN:
09 3391 00 04
Series: 718

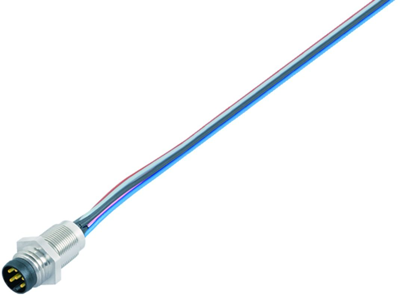

09 3391 00 04 binder Sensor-Actuator Connectors Image 1
09 3391 00 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.6989 € *
Available: 8 pcs.
Next delivery: 50 pcs. on 2025-11-20
Total Price:
8.70 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6989 €
10 pcs.
7.8302 €
50 pcs.
6.8901 €
100 pcs.
6.1999 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 09-3391-00-04, BINDER

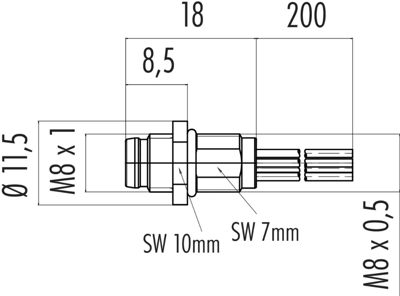

M8 Male panel mount connector, Contacts: 4, unshielded, single wires, IP67/IP69K, UL, M8x0.5.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Filter Property Value
Contact connection strand connection
Degree of protection (IP) IP67/IP69K
Orientation straight
Assembly panel mounting
Additional parts equipped
Version cable 0.2 m
Pin number 4 pole
Type of locking screw locking
contact surface gold-plated
Thread size M8
Product type panel plug
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
