09 3111 01 04 | binder

Panel plug, M5, 4 pole, strand connection, screw locking, straight, 09 3111 01 04

Order No.: 67F5586
EAN: 4099891164546
MPN:
09 3111 01 04
Series: 707

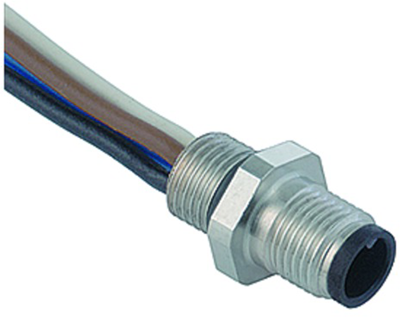

09 3111 01 04 binder Sensor-Actuator Connectors Image 1

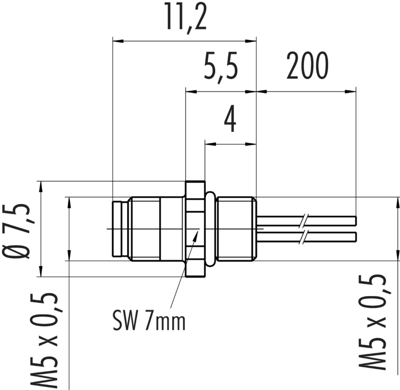

09 3111 01 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.3510 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3510 €
10 pcs.
14.2919 €
50 pcs.
13.2685 €
100 pcs.
12.3641 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-ended cord sets for sensors, M 5, type Binder 707.

Flanged cable plug connector with screw lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Cable housing. Flange body: PA 66. Flange housing: nickel-plated brass. Rated voltage: 125 V. Rated current: 1.0 A with 0.14 mm², 2.0 A with 0.25 mm². Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Insertion/removal cycles: 500. Operating temperatures: (cable moving) - 5.0 to +80 °C, (cable static) - 15 to +80 °C with 0.14 mm², - 25 to +80 °C with 0.25 mm².

Male panel mount connectors with stranded wires, type 707.

Rear mount.

Technical attributes (type, number of positions, cable structure, cable length): 09-3111-01-04, 4-position, 4 x 0.25 mm², PVC, 200 mm

Technical specifications
Filter Property Value
Contact connection strand connection
Degree of protection (IP) IP67
Orientation straight
Assembly panel mounting
Additional parts equipped
Version cable 0.2 m
Pin number 4 pole
Type of locking screw locking
contact surface gold-plated
Thread size M5
Product type panel plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
