09 3106 81 03 | binder

Panel socket, M5, 3 pole, THT, screw locking, straight, 09 3106 81 03

Order No.: 67F5618
EAN: 4099889702965
MPN:
09 3106 81 03
Series: 707

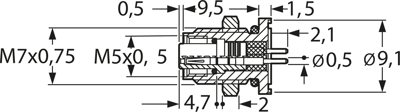

09 3106 81 03 binder Sensor-Actuator Connectors Image 1

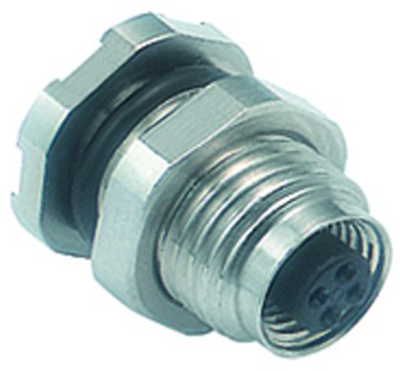

09 3106 81 03 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.5410 € *
Available: 26 pcs.
Total Price:
16.54 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5410 €
10 pcs.
14.5775 €
50 pcs.
13.5660 €
150 pcs.
12.9710 €
500 pcs.
12.3046 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-ended cord set for sensors, M 5, type Binder 707.

Flanged cable plug connector with screw lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Cable housing. Flange body: PA 66. Flange housing: nickel-plated brass. Rated voltage: 125 V. Rated current: 1.0 A with 0.14 mm², 2.0 A with 0.25 mm². Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Insertion/removal cycles: 500. Operating temperatures: (cable moving) - 5.0 to +80 °C, (cable static) - 15 to +80 °C with 0.14 mm², - 25 to +80 °C with 0.25 mm².

FeMale panel mount connector with dip soldering contacts, type 707.

Technical attributes (type, number of poles, cable structure, cable length): 09-3106-81-03, 3-pole

Technical specifications
Filter Property Value
Assembly panel mounting
Orientation straight
Product type panel socket
Additional parts equipped
Type of locking screw locking
Pin number 3 pole
Thread size M5
Degree of protection (IP) IP67
contact surface gold-plated
Contact connection THT
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
