09 2450 300 05 | binder
Panel socket, 7/8", 4 pole + PE, strand connection, screw locking, straight, 09 2450 300 05
Unit Price (€ / pc.)
24.5140 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
24.51 € *
Price list
Quantity
Price per unit*
1 pcs.
24.5140 €
10 pcs.
21.5628 €
50 pcs.
20.0872 €
150 pcs.
19.2066 €
500 pcs.
18.2308 €
*incl. VAT plus shipping costs
Subject to prior sale

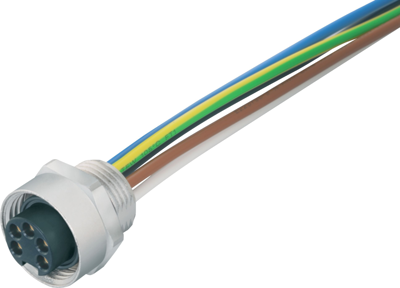

Female panel mount connector, 09-2450-300-05, Franz Binder
7/8" Female connector, poles 4+PE, unshielded, single wires, IP68, UL, VDE, PG 13.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Contact connection | strand connection | |
| Pin number | 4 pole + PE | |
| Product type | panel socket | |
| Degree of protection (IP) | IP68 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Version | cable 0.2 m | |
| Assembly | panel mounting | |
| Thread size | 7/8" |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
