09 2450 100 05 | binder
Panel socket, 7/8", 4 pole + PE, strand connection, screw locking, straight, 09 2450 100 05
Unit Price (€ / pc.)
25.6326 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
25.63 € *
Price list
Quantity
Price per unit*
1 pcs.
25.6326 €
10 pcs.
24.0856 €
25 pcs.
22.6457 €
50 pcs.
21.2772 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 09 2450 100 05, binder

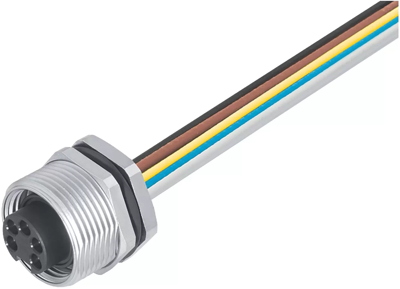

7/8" Female panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, VDE, front fastened.

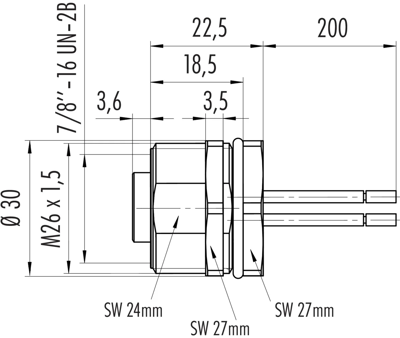

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.2 m | |
| Pin number | 4 pole + PE | |
| Thread size | 7/8" | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
