09 2449 300 04 | binder

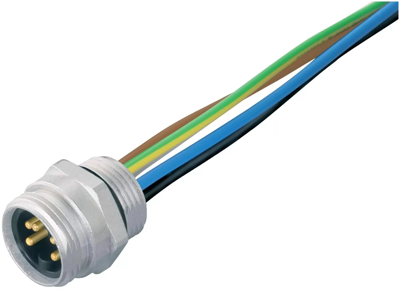

Panel plug, 7/8", 4 pole, strand connection, screw locking, straight, 09 2449 300 04
Unit Price (€ / pc.)
20.3371 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
20.34 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3371 €
10 pcs.
19.1233 €
50 pcs.
17.9690 €
100 pcs.
16.9099 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 09 2449 300 04, binder
7/8" Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, VDE, PG 13.5.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | 7/8" | |
| Orientation | straight | |
| Product type | panel plug | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68 | |
| Additional parts | equipped | |
| Version | cable 0.2 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
