09 2448 100 04 | binder
Panel socket, 7/8", 4 pole, strand connection, screw locking, straight, 09 2448 100 04
Unit Price (€ / pc.)
25.7516 € *
Available: 14 pcs.
Total Price:
25.75 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7516 €
10 pcs.
22.6457 €
50 pcs.
21.1106 €
150 pcs.
20.1705 €
500 pcs.
19.1471 €
*incl. VAT plus shipping costs
Subject to prior sale

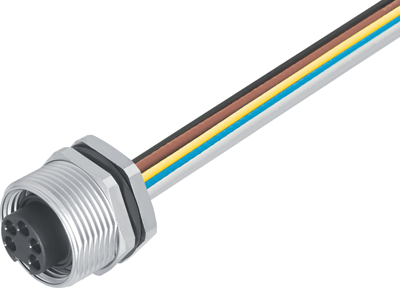

Female panel mount connector, 09-2448-100-04, Franz Binder
7/8" Female connector, poles 4, unshielded, single wires, IP68, UL, VDE, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Assembly | front mounting | |
| Additional parts | equipped | |
| Thread size | 7/8" | |
| Orientation | straight | |
| Degree of protection (IP) | IP68 | |
| Product type | panel socket | |
| Pin number | 4 pole | |
| Version | cable 0.2 m | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
