09 2447 320 03 | binder

Panel plug, 7/8", 2 pole + PE, strand connection, screw locking, straight, 09 2447 320 03

Order No.: 66P1057
EAN: 4099879087737
MPN:
09 2447 320 03
Series: 820
09 2447 320 03 binder Sensor-Actuator Connectors Image 1
09 2447 320 03 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.4918 € *
Available: 10 pcs.
Total Price:
20.49 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4918 €
10 pcs.
18.0404 €
50 pcs.
16.8028 €
150 pcs.
16.0650 €
500 pcs.
15.2558 €
*incl. VAT plus shipping costs
Subject to prior sale

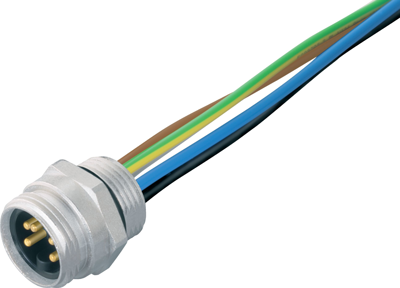

Male panel mount connector, 09-2447-320-03, Franz Binder

7/8" Male connector, poles 2+PE, unshielded, single wires, IP68, UL, VDE, M20x1.5

Technical specifications
Contact connection strand connection
Degree of protection (IP) IP68
Type of locking screw locking
Additional parts equipped
Orientation straight
Pin number 2 pole + PE
contact surface gold-plated
Product type panel plug
Thread size 7/8"
Assembly panel mounting
Version cable 0.2 m
Compliance
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
