09 2431 09 03 | binder

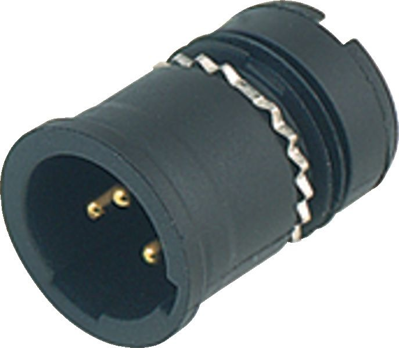

Panel plug, M12, 2 pole + PE, solder connection, Screw locking, straight, 09 2431 09 03
Images may differ
Unit Price (€ / pc.)
7.1162 € *
Available: 40 pcs.
Leadtime: 2 Weeks **
Total Price:
7.12 € *
Quantity
Price per unit*
1 pcs.
7.1162 €
10 pcs.
6.2594 €
100 pcs.
5.4978 €
250 pcs.
5.2717 €
1000 pcs.
4.9385 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Male receptacle, 09-2431-09-03, Franz Binder
M12-US Male receptacle, poles 2+PE, unshielded, solder, IP67, UL
Technical specifications
| Version | panel plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 2 pole + PE | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
