09 0702 800 05 | binder

Panel socket, M12, 4 pole + PE, strand connection, screw locking, straight, 09 0702 800 05

Order No.: 70P3138
EAN: 4099891670825
MPN:
09 0702 800 05
Series: 824
09 0702 800 05 binder Sensor-Actuator Connectors Image 1
09 0702 800 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
29.7381 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
29.74 € *
Price list
Quantity
Price per unit*
1 pcs.
29.7381 €
10 pcs.
27.9531 €
25 pcs.
26.0015 €
50 pcs.
24.1689 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 09 0702 800 05, binder

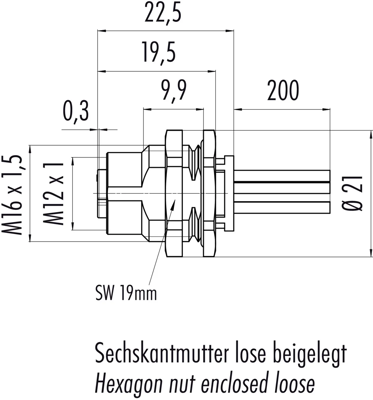

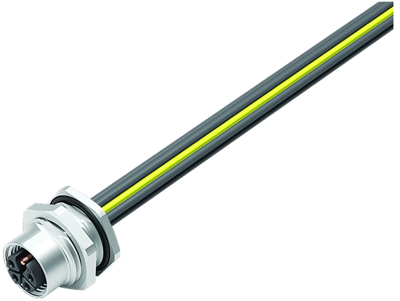

M12-K Female panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, M16x1.5, screwable from the front.

Technical specifications
Filter Property Value
Contact connection strand connection
Degree of protection (IP) IP68
Orientation straight
Assembly front mounting
Additional parts equipped
Version cable 0.2 m
Pin number 4 pole + PE
Type of locking screw locking
contact surface gold-plated
Thread size M12
Product type panel socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
