09 0692 070 04 | binder

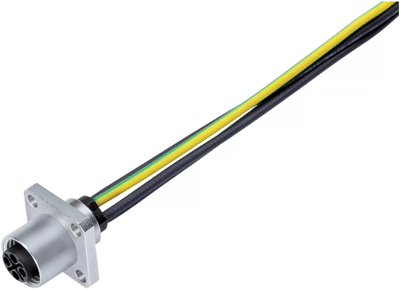

Panel socket, M12, 3 pole + PE, strand connection, screw locking, straight, 09 0692 070 04
Unit Price (€ / pc.)
22.8123 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.81 € *
Price list
Quantity
Price per unit*
1 pcs.
22.8123 €
10 pcs.
21.4438 €
50 pcs.
20.1586 €
100 pcs.
18.9567 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 09 0692 070 04, binder

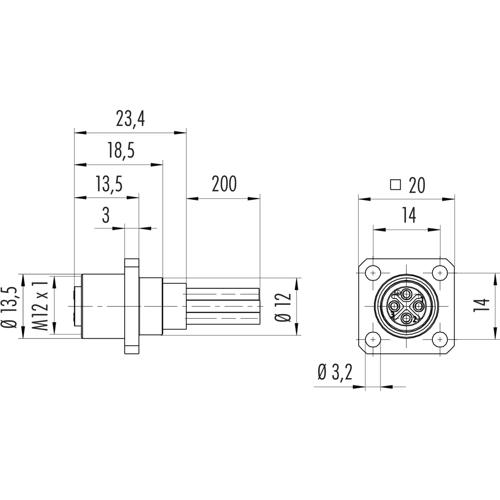

M12-S Square female panel mount connector, Contacts: 3+PE, unshielded, single wires, IP40, UL.
Technical specifications
| Pin number | 3 pole + PE | |
| Degree of protection (IP) | IP40 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
