09 0691 121 04 | binder
Panel plug, M12, 3 pole + PE, strand connection, screw locking, straight, 09 0691 121 04
As a private customer, you can buy this item as soon as we have it back in stock.

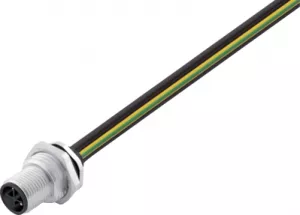

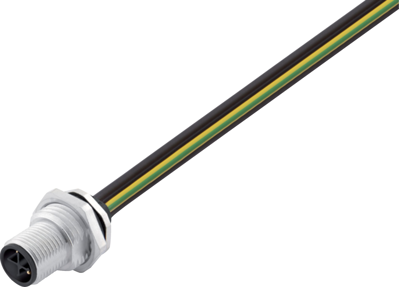

Male panel mount connector, 09-0691-121-04, Franz Binder
M12-S Male connector, poles 3+PE, unshielded, single wires, IP68, UL, VDE, M16x1.5, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Version | cable 0.2 m | |
| Thread size | M12 | |
| Degree of protection (IP) | IP68 | |
| Pin number | 3 pole + PE | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Assembly | front mounting |
Download
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
