09 0641 400 05 | binder
Panel plug, M12, 4 pole + FE, strand connection, screw locking, straight, 09 0641 400 05
Unit Price (€ / pc.)
23.4073 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
23.41 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4073 €
10 pcs.
22.0031 €
50 pcs.
20.6822 €
100 pcs.
19.4446 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 09 0641 400 05, binder

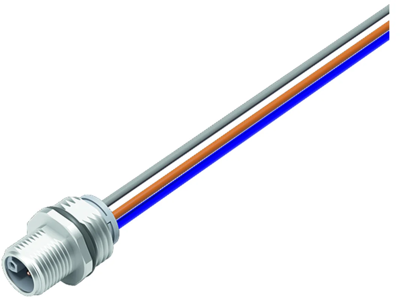

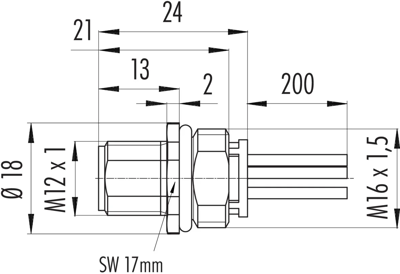

M12-L Male panel mount connector, Contacts: 4+FE, unshielded, single wires, IP68, M16x1.5.
Technical specifications
| Pin number | 4 pole + FE | |
| Degree of protection (IP) | IP68 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
