09 0632 642 04 | binder

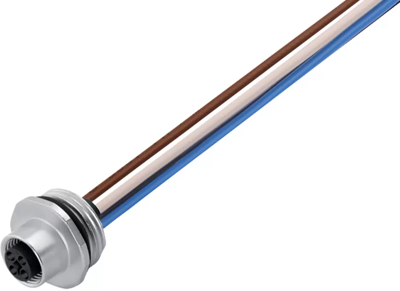

Panel socket, M12, 4 pole, strand connection, screw locking, straight, 09 0632 642 04
Unit Price (€ / pc.)
25.2399 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
25.24 € *
Price list
Quantity
Price per unit*
1 pcs.
25.2399 €
10 pcs.
23.7286 €
25 pcs.
22.3125 €
50 pcs.
20.9559 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 09 0632 642 04, binder

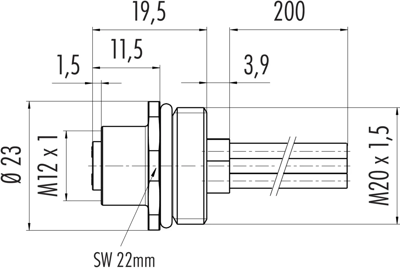

M12-T Female panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, VDE, M20x1.5.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
