09 0632 321 04 | binder

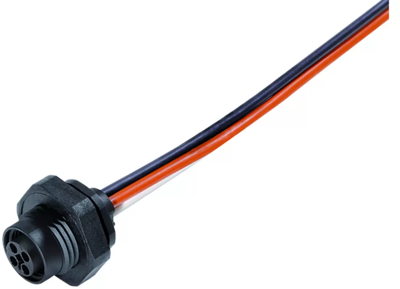

Panel socket, M12, 4 pole, strand connection, screw locking, straight, 09 0632 321 04
Unit Price (€ / pc.)
19.8016 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
19.80 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8016 €
10 pcs.
18.6116 €
50 pcs.
17.5049 €
100 pcs.
16.4577 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 09 0632 321 04, binder

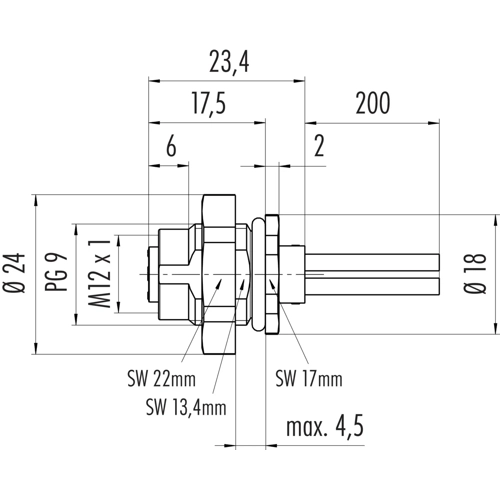

M12-T Female panel mount connector, Contacts: 4, unshielded, single wires, IP68, M16x1.5, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68 | |
| Version | cable 0.2 m | |
| Assembly | front mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
