09 0631 700 04 | binder

Panel plug, M12, 4 pole, strand connection, screw locking, straight, 09 0631 700 04

Order No.: 66P1000
EAN: 4099879087522
MPN:
09 0631 700 04
Series: 813
09 0631 700 04 binder Sensor-Actuator Connectors Image 1
09 0631 700 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.7540 € *
Available: 9 pcs.
Total Price:
19.75 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7540 €
10 pcs.
17.3859 €
50 pcs.
16.1959 €
150 pcs.
15.4938 €
500 pcs.
14.6965 €
*incl. VAT plus shipping costs
Subject to prior sale

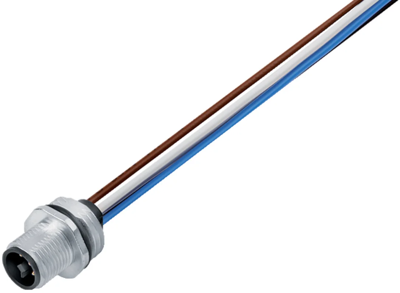

Male panel mount connector, 09-0631-700-04, Franz Binder

M12-T Male connector, poles 4, unshielded, single wires, IP68, UL, VDE, M16x1.5

Technical specifications
Filter Property Value
Pin number 4 pole
Degree of protection (IP) IP68
Version cable 0.2 m
Assembly panel mounting
Additional parts equipped
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection strand connection
Thread size M12
Product type panel plug
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
